T-PRO Ocarina A+++ kondicionieriai / šilumos siurbliai oras/oras (-30'C) su elektriniu pašildymu

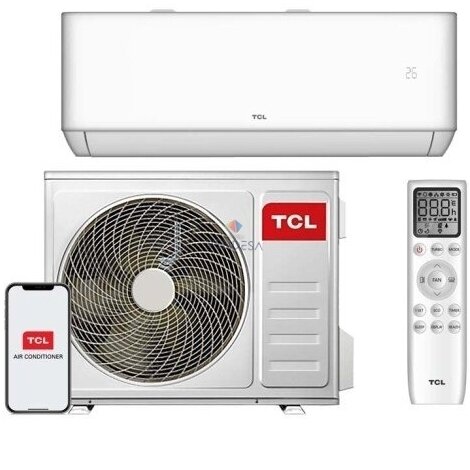

Kondicionierius / šilumos siurblys TCL Ocarina T-PRO bevėjis 3.8/3.51kW 12K A+++ R32 (-30'C) su el pašild. Wi-Fi

TECHNINĖ INFORMACIJA

TAC-09CHSD/TPG31I3AHB TAC-12CHSD/TPG31I3AHB
Type heating pump heating pump
Control type remote controller remote controller
Declared cooling capacity W 2610(940~3700) 3510(1000~4600)
Declared heating capacity W 3000(940~4000) 3800(1000~4900)
Pdesignc W 2600 3500
SEER declared W/W 8,5 8,5
Energy Class A+++ A+++
EER declared 3,73 3,51
COP declared 4,05 3,91
Pdesignh Average TDS W 2400 2600
SCOP Average declared W/W 4,6 4,6
Energy Class(Average) A++ A++
Declare capacity(-10℃) W 2300 2400
Back up heating capacity(-10℃) W 100 200
Pdesignh warmer TDS W 2500 3300
SCOP Warmer declared W/W 5,6 5,6
Energy Class(Warmer) A+++ A+++
Declare capacity(2℃) W 2500 3300
Back up heating capacity(2℃) W 0 0
Annual energy consumption Cooling kwh/a 108 145
 Average kwh/a 731 792
 Warmer kwh/a 625 825
Moisture removal Liters/h 1 1,2
Indoor sound power(S/H/M/L/Mute) dB(A) 52/48/43/37/31 53/48/43/38/32
Outdoor sound power dB(A) 61 63
Indoor sound pressure(S/H/M/L/Mute) dB(A) 42/38/33/27/21 43/38/33/29/22
Outdoor sound pressure dB(A) 51 53
Electrical Data
Power supply 220-240V~/50Hz/1P 220-240V~/50Hz/1P
Power supply side Outdoor Outdoor
Voltage Range V 165~265 165~265
Operating current Cooling A 3.3(1.2~8.1) 4.6(1.5~9.2)
Heating A 3.7(1.2~9.0) 4.4(1.5~10.0)
Power consumption Cooling W 699(240~1380) 1000(290~1510)
Heating W 740(240~1552) 970(290~1720)
Refrigerating System
Refrigerant type/Charge/GWP/CO2 equivalent R32/0.45kg/675/0.304tonnes R32/0.63kg/675/0.426tonnes
Compressor Type Rotary Rotary
Model KSK82D26UEZE3 KSN98D64UEZ3
MFG GMCC GMCC

Indoor air circulation Cooling/heating m3/h 560/560 670/670
Indoor fan type Cross Flow,DC Cross Flow,DC
Indoor fan speed S/H/M/L/Mute Cooling rpm 1250/1080/920/800/700 1250/1100/850/750/650
Heating rpm 1150/1100/1000/900/850 1250/1100/920/800/750
Dry rpm 800 750
Sleep rpm / /
Outdoor fan type Propeller fan,DC Propeller fan,DC
Outdoor air circulation m3/h 2200 2200
Outdoor fan speed rpm "Cooling:900/810/730/610/450
Heating:910/910/730/610/450" "Cooling:900/870/830/670/650
Heating:910/910/850/770/650"
Connections
Connecting Wiring Core x Size 5×1.0mm² 5×1.0mm²
Expension device Electronic expansion valve Electronic expansion valve
Connecting Pipe Gas Inches 3/8" 3/8"
Liquid Inches 1/4" 1/4"
Others
Application area m² 9~16 14~22
Max. refrigerant pipe length m 25 25
Max. difference in level m 10 10
Operation temperature range ℃ 16-31 16-31
Ambient temperature range Outdoor ℃ Cooling:-15-53/Heating:-25-30 Cooling:-15-53/Heating:-25-30
Indoor ℃ Cooling:17-32/Heating:0-30 Cooling:17-32/Heating:0-30
Net dimensions Indoor mm 790×275×192 820×306×195
(W x H x D) Outdoor mm 795×549×305 795×549×305
Net weight Indoor kg 8,5 9,5
Outdoor kg 23,5 25,5
Packing dimensions Indoor mm 860×345×265 890×380×265
(W x H x D) w/o pipe Outdoor mm 835×328×575 835×328×575
w/i pipe Outdoor mm 835×340×585 835×340×585
Gross weight Indoor kg 10,5 12
Outdoor kg 25,5 28,5
Loading Capacity w/o pipe 20'/40'GQ/40'HQ 275 260
Loading Capacity w/i pipe 20'/40'GQ/40'HQ 265 250
