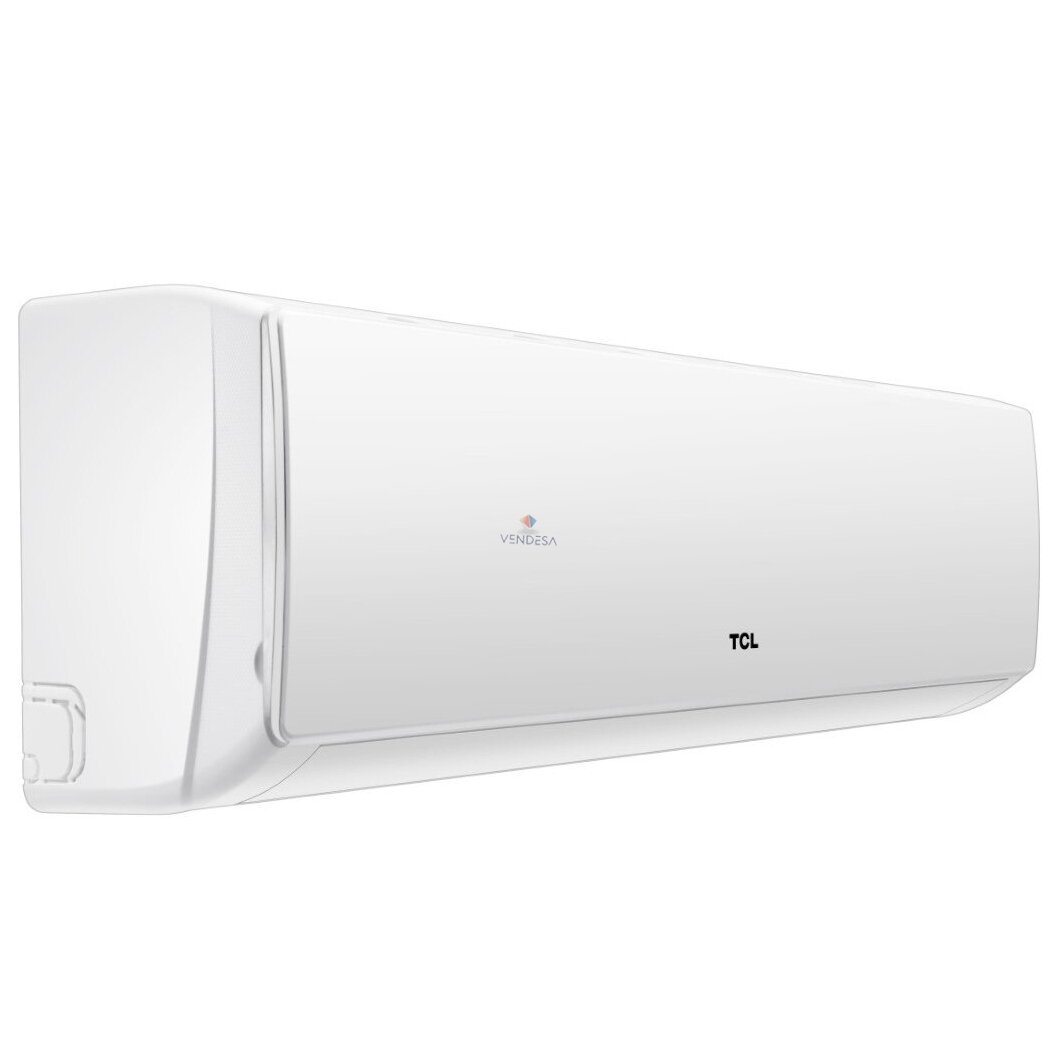

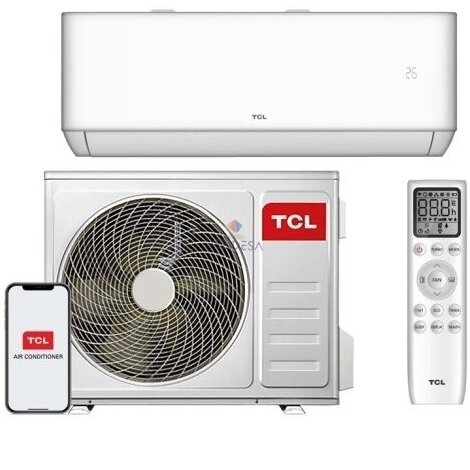

Kondicionierius / šilumos siurblys TCL Ocarina T-PRO bevėjis 7.1/6.91kW 24K A+++ R32 (-30'C) su el pašild. Wi-Fi
Kondicionierius / šilumos siurblys TCL Ocarina T-PRO bevėjis 7.1/6.91kW 24K A+++ R32 (-30'C) su el pašild. Wi-Fi
Kodas: TAC-24CHSD/TPG31I3AHBKaina 1300€1944€Sutaupykite 644€-
T-PRO Ocarina A+++ kondicionieriai / šilumos siurbliai oras/oras (-30'C) su elektriniu pašildymu
Kondicionierius / šilumos siurblys TCL Ocarina T-PRO bevėjis 3.0/2.61kW 09K A+++ R32 (-30'C) su el pašild. Wi-Fi
TECHNINĖ INFORMACIJA
TAC-09CHSD/TPG31I3AHB TAC-12CHSD/TPG31I3AHB TAC-18CHSD/TPG31I3AHB TAC-24CHSD/TPG31I3AHB
Type heating pump heating pump heating pump heating pump
Control type remote controller remote controller remote controller remote controller
Declared cooling capacity W 2610(940~3700) 3510(1000~4600) 5100(1250-5920) 6910(1830~7820)
Declared heating capacity W 3000(940~4000) 3800(1000~4900) 5800(1250-6690) 7100(1850~7960)
Pdesignc W 2600 3500 5100 6900
SEER declared W/W 8,5 8,5 8,5 8,5
Energy Class A+++ A+++ A+++ A+++
EER declared 3,73 3,51 4,04 3,56
COP declared 4,05 3,91 4,36 3,92
Pdesignh Average TDS W 2400 2600 4500 5500
SCOP Average declared W/W 4,6 4,6 4,6 4,6
Energy Class(Average) A++ A++ A++ A++
Declare capacity(-10℃) W 2300 2400 4000 5300
Back up heating capacity(-10℃) W 100 200 500 200
Pdesignh warmer TDS W 2500 3300 5200 6600
SCOP Warmer declared W/W 5,6 5,6 5,1 5,1
Energy Class(Warmer) A+++ A+++ A+++ A+++
Declare capacity(2℃) W 2500 3300 5200 6600
Back up heating capacity(2℃) W 0 0 0 0
Annual energy consumption Cooling kwh/a 108 145 210 285
Average kwh/a 731 792 1370 1674
Warmer kwh/a 625 825 1428 1812
Moisture removal Liters/h 1 1,2 1,5 2
Indoor sound power(S/H/M/L/Mute) dB(A) 52/48/43/37/31 53/48/43/38/32 57/54/50/45/40 58/55/50/43/40
Outdoor sound power dB(A) 61 63 64 69
Indoor sound pressure(S/H/M/L/Mute) dB(A) 42/38/33/27/21 43/38/33/29/22 47/42/38/32/28 48/45/40/34/30
Outdoor sound pressure dB(A) 51 53 54 59
Electrical Data
Power supply 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P
Power supply side Outdoor Outdoor Outdoor Outdoor
Voltage Range V 165~265 165~265 165~265 165~265
Operating current Cooling A 3.3(1.2~8.1) 4.6(1.5~9.2) 5.6(1.7~12.0) 8.7(2.3~15.5)
Heating A 3.7(1.2~9.0) 4.4(1.5~10.0) 5.9(1.7~13.0) 8.0(2.3~16.0)
Power consumption Cooling W 699(240~1380) 1000(290~1510) 1260(330-2350) 1940(410~2830)
Heating W 740(240~1552) 970(290~1720) 1330(340-2540) 1810(420~3010)
Refrigerating System
Refrigerant type/Charge/GWP/CO2 equivalent R32/0.45kg/675/0.304tonnes R32/0.63kg/675/0.426tonnes R32/1.14kg/675/0.770tonnes R32/1.27kg/675/0.858tonnes
Compressor Type Rotary Rotary Rotary Rotary
Model KSK82D26UEZE3 KSN98D64UEZ3 KSN140D33UFZ3 C-6RZ180H3AAF
MFG GMCC GMCC GMCC SANYO
Indoor air circulation Cooling/heating m3/h 560/560 670/670 1000/1000 1100/1100
Indoor fan type Cross Flow,DC Cross Flow,DC Cross Flow DC Cross Flow DC
Indoor fan speed S/H/M/L/Mute Cooling rpm 1250/1080/920/800/700 1250/1100/850/750/650 1220/1130/990/850/750 1220/1130/990/850/750
Heating rpm 1150/1100/1000/900/850 1250/1100/920/800/750 1130/1070/970/870/800 1220/1130/1000/880/800
Dry rpm 800 750 850 850
Sleep rpm / / / /
Outdoor fan type Propeller fan,DC Propeller fan,DC Propeller fan,DC Propeller fan,DC
Outdoor air circulation m3/h 2200 2200 3000 4000
Outdoor fan speed rpm "Cooling:900/810/730/610/450
Heating:910/910/730/610/450" "Cooling:900/870/830/670/650
Heating:910/910/850/770/650" "Cooling:910/790/690/610/550
Heating:910/810/690/610/550" "Cooling:850/850/750/630/510
Heating:810/810/750/630/510"
Connections
Connecting Wiring Core x Size 5×1.0mm² 5×1.0mm² 5×1.5mm² 5×1.5mm²
Expension device Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve
Connecting Pipe Gas Inches 3/8" 3/8" 1/2" 1/2"
Liquid Inches 1/4" 1/4" 1/4" 1/4"
Others
Application area m² 9~16 14~22 20~35 27~45
Max. refrigerant pipe length m 25 25 25 25
Max. difference in level m 10 10 10 10
Operation temperature range ℃ 16-31 16-31 16-31 16-31
Ambient temperature range Outdoor ℃ Cooling:-15-53/Heating:-25-30 Cooling:-15-53/Heating:-25-30 Cooling:-15-53/Heating:-25-30 Cooling:-15-53/Heating:-25-30
Indoor ℃ Cooling:17-32/Heating:0-30 Cooling:17-32/Heating:0-30 Cooling:17-32/Heating:0-30 Cooling:17-32/Heating:0-30
Net dimensions Indoor mm 790×275×192 820×306×195 1100×333×222 1100×333×222
(W x H x D) Outdoor mm 795×549×305 795×549×305 920×699×380 967×803×421
Net weight Indoor kg 8,5 9,5 13,5 14
Outdoor kg 23,5 25,5 37 46,5
Packing dimensions Indoor mm 860×345×265 890×380×265 1165×405×295 1165×405×295
(W x H x D) w/o pipe Outdoor mm 835×328×575 835×328×575 949×732×392 1022×835×480
w/i pipe Outdoor mm 835×340×585 835×340×585 950×732×420 1022×835×480
Gross weight Indoor kg 10,5 12 16,5 17
Outdoor kg 25,5 28,5 40 49,5
Loading Capacity w/o pipe 20'/40'GQ/40'HQ 275 260 155 114
Loading Capacity w/i pipe 20'/40'GQ/40'HQ 265 250 150 114
